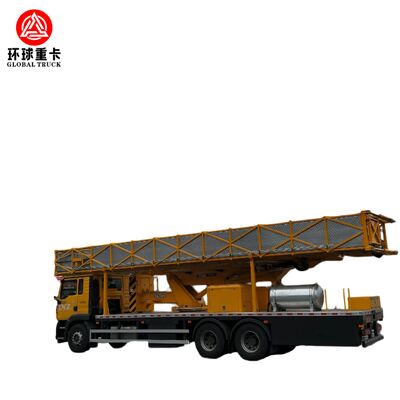

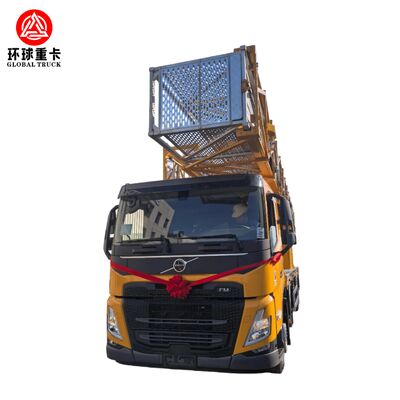

Euro 4/2/5/6 Emission Standard Bridge Inspection Truck with 12m-20m Working Height and SINOTRUK HOWO Chassis

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	SINOTRUK
Сертификация:	CE
Номер модели:	автомобиль для осмотра мостов

Оплата и доставка Условия:

Количество мин заказа:	1 шт.
Цена:	лично переговорить
Упаковывая детали:	Обнаженная
Время доставки:	35 рабочих дней
Условия оплаты:	Л/К, Т/Т
Поставка способности:	500 ед./год

контакт

Подробное описание продукта

Тип:	Грузовик для проверки моста	Стандарт выбросов:	Евро 4/2/5/6
Сертификация:	ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE	Тип трансмиссии:	Руководство
Состояние:	Новый	Количество мест:	2~3
Код ТН ВЭД:	8705909990	Емкость топливного бака:	400л
Выделить:	Euro 4/2/5/6 Emission Standard Bridge Inspection Truck , 12m-20m Working Height Bridge Maintenance Vehicle , SINOTRUK HOWO Chassis Under Bridge Access Platform

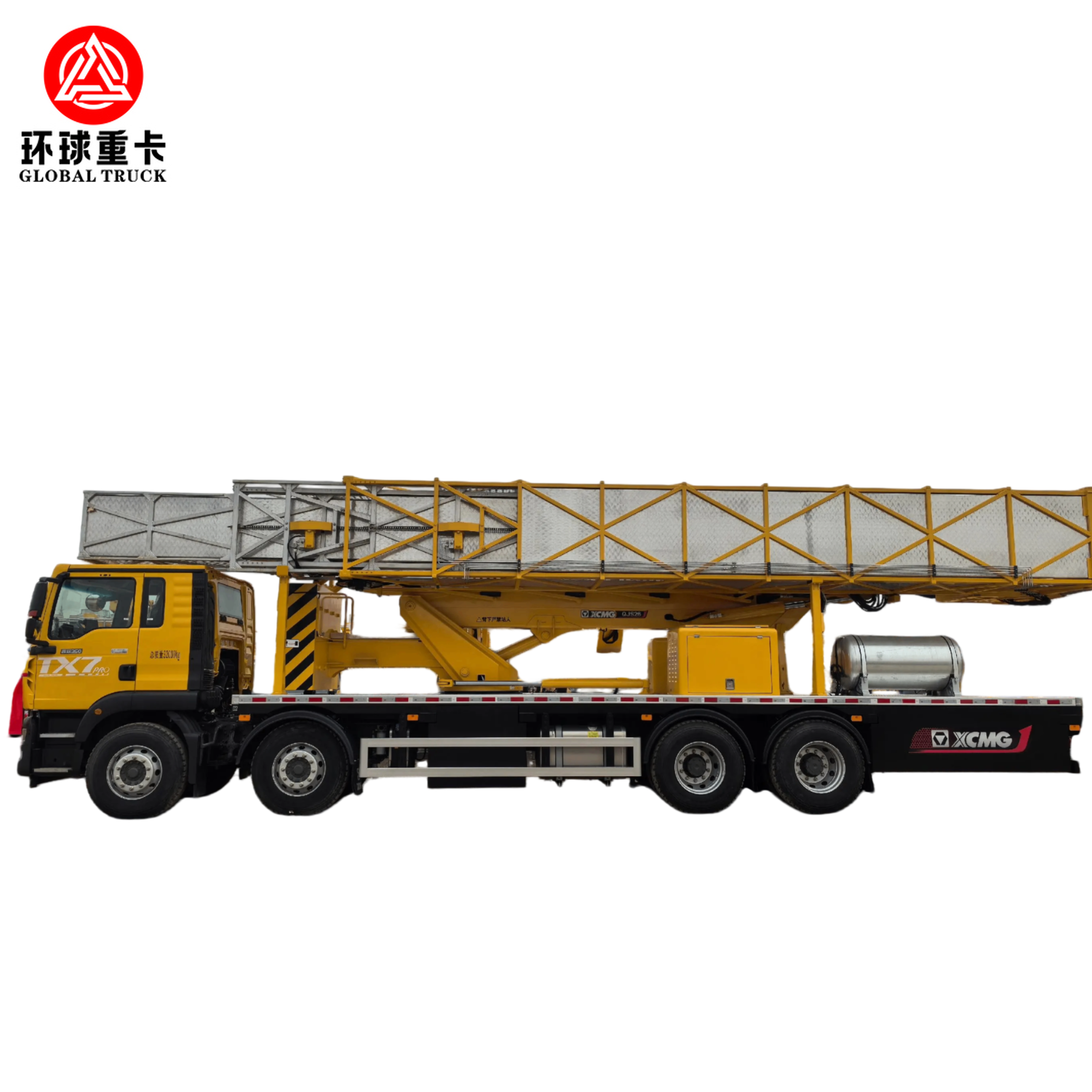

Bridge Inspection Truck (XCMG Upper + SINOTRUK HOWO Chassis)

This bridge inspection truck is engineered for safe and efficient inspection, maintenance, and repair of bridges and elevated structures. It combines a SINOTRUK HOWO heavy-duty chassis with an XCMG aerial working system, delivering stable performance, strong lifting capability, and reliable operation across diverse working environments.

Structural Configuration

Chassis System

Manufacturer: SINOTRUK
Model: HOWO series
Drive Type: 4x2 / 6x4
Engine: Weichai or SINOTRUK diesel engine
Power Range: 266-420 HP
Transmission: Manual gearbox (10F / 12F)
Emission Standard: Euro II / III / IV / V available
Steering: Left-hand drive / Right-hand drive
Frame: Reinforced heavy-duty chassis suitable for upper structure load

Working Platform System (XCMG)

Brand: XCMG
Structure Type: Telescopic or folding boom system
Maximum Working Height: 12m - 20m (optional customization)
Maximum Working Reach: up to 12m
Platform Load Capacity: 200-400 kg
Platform Size: 1200-1500 mm (approx.)
Rotation: Optional 360° continuous rotation
Control Mode: Electro-hydraulic control system

Hydraulic System

The vehicle utilizes a high-pressure hydraulic system with stable and precise performance characteristics.

Hydraulic pump: High efficiency design
Working pressure: 16-20 MPa
Hydraulic oil tank: Equipped with cooling system
Components: High-quality hydraulic valves and cylinders
Safety system: Pressure relief and overload protection

Safety System

Automatic hydraulic leveling outriggers
Anti-overturning protection system
Dual emergency stop system (platform and ground)
Hydraulic locking device
Height and rotation limit protection
Non-slip working platform with guardrails
Emergency lowering system

Electrical System

24V DC electrical system
Waterproof and dustproof wiring
Central control panel
LED working lights
Optional wireless remote control
Emergency backup power

Performance Features

Stable operation even at full extension
Precise control of boom movement
Fast deployment and recovery
Suitable for complex bridge structures
Strong adaptability to different road conditions

Application Scope

Bridge inspection and structural assessment
Highway and expressway maintenance
Overpass and viaduct maintenance
Railway bridge inspection
Municipal infrastructure repair
Emergency rescue and maintenance operations

Quality Control

Strict factory testing before delivery
Load testing of working platform
Hydraulic system pressure testing
Stability and safety system inspection
Inspection report available upon request

Delivery and Packaging

Delivery Time: 30-45 days after order confirmation
Packaging: Waxed and rust-protected, shipped as complete unit
Shipping Options: RO-RO, bulk vessel, or container (depending on size)
Port: Qingdao / Shanghai / Tianjin

After-Sales Service

Warranty period: 12 months
Technical support: Remote guidance and troubleshooting
Spare parts: Long-term supply available
Optional: On-site commissioning and training

Customer Feedback

Client from Kenya: "The truck is reliable for our bridge inspection work. The boom operation is smooth and the chassis handles rough roads well."

Client from Tanzania: "The equipment is stable and meets our project requirements. The hydraulic system works efficiently and safely."

Client from Nigeria: "The quality is good and the machine is easy to maintain. It helps us improve our daily inspection efficiency."

Client from Philippines: "The system is user-friendly and the training was easy. The platform is very stable during operation."

Frequently Asked Questions

Can the working height be customized?

Yes. We can design working heights from 12m to 20m according to your requirements.

Is this vehicle suitable for African road conditions?

Yes. The SINOTRUK chassis is widely used in Africa and is suitable for rough road conditions.

Can you provide right-hand drive versions?

Yes. Both left-hand drive and right-hand drive are available.

What safety systems are included?

Anti-overturning, emergency stop, automatic leveling, and overload protection are standard.

Do you support customization?

Yes. We can customize specifications based on your working requirements and local regulations.

What is the main advantage of this model?

It combines a reliable chassis with a professional aerial working system, offering stability, safety, and cost efficiency.
